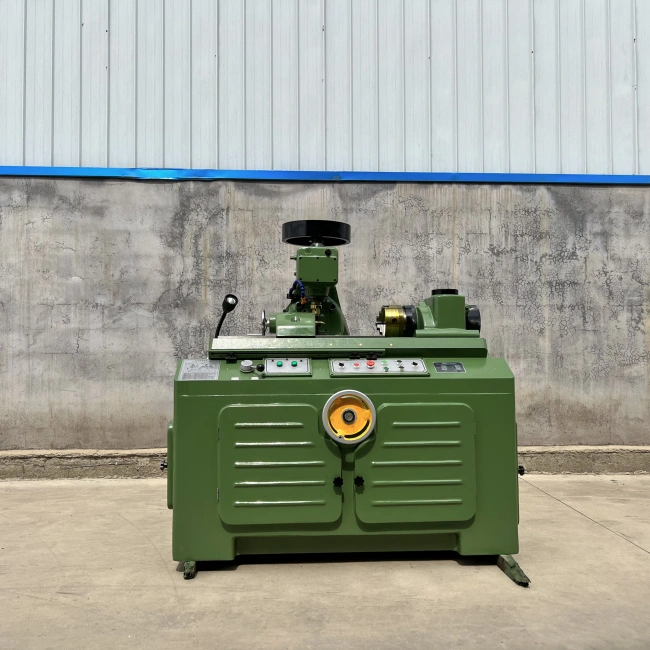

The main use of the machine tool: Y631K spline shaft milling machine mainly adopts rolling milling straight groove spline shaft, key open line spline shaft and spur gear. This machine tool is suitable for the automobile, tractor industry and machine tool manufacturing.
The main features of the machine:
1. The machine tool bed is cast with high-quality cast iron material and tempered to strengthen the overall seismic performance of the machine tool, and the machine tool guide rail is treated with high-frequency quenching, and the surface hardness is high to extend the service life of the guide rail surface.
2. The main components are modulated, carburized and quenched.
3. The copper (bushing, bearing, indexing turbine) workpieces used in the machine tool are made of ZQsn6-6-3 material tin bronze, which increases the service life of the extra bed and the workpiece.
4. The main rotating parts of the machine tool are driven by spiral arc bevel gears, which increases the torque and reduces wear and noise.
Machining accuracy of the machine tool: cumulative error of 0.025-0.03mm parallelism of the bond side to the axis line and parallelism of the bond side itself 0.03/300mm Machining surface roughness Ra.≤3.2μm
