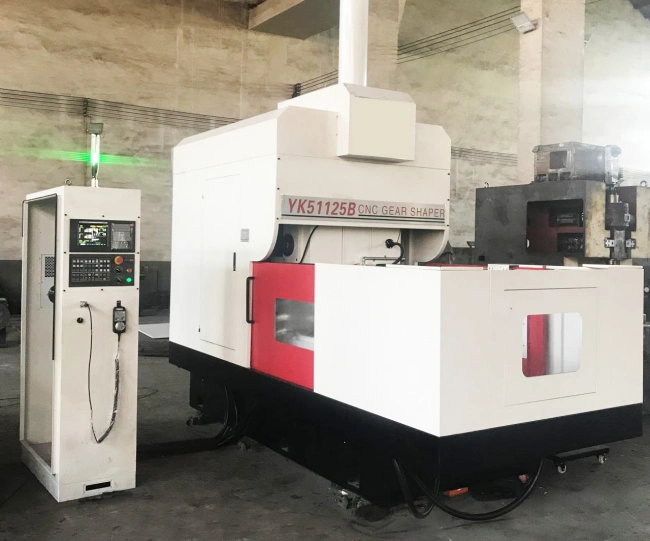

YK5180B type 3 axis CNC gear shaping machine is suitable for processing internal and external meshing spur teeth, cylindrical gears and double and multi-link gears with retraction grooves, which can be suitable for single piece production, especially suitable for mass production, using CNC feeding, can automatically complete one to n times of automatic feeding, after processing, the workpiece is automatically withdrawn, automatic stop. The accuracy of the machine tool gear shaping can reach level 7.
Machine features:
1. The machine tool is fixed on the bed by a column, and the worktable is laid out radially and horizontally, which can be processed smoothly and reversed
2. The tool holder body is used to let the knife reduce the wear of the machine tool guide rail surface.
3. The worktable moves radially horizontally, controlled by CNC servo motor and ball screw to ensure the accuracy of tool feeding.
4. The change of spindle speed, split gear transmission, and circumferential feed adopts exchange hanging wheels.
5. High-precision indexing worm gear pair, made of tin bronze ZQSn10-1 material with superior wear resistance.
6. High-precision grinding transmission gear, accurate transmission and low noise.
7. The key parts in the spindle and transmission chain are made of high-precision rolling bearings.
8. The cooling of the machine tool is supplied by the cooling pump, and the cooling oil is sent to the tool holder through the conveyor pipe, and the size of the coolant is adjusted by the switch in front of the nozzle.
9. The machine tool is semi-sealed, and the coolant does not leak out.
