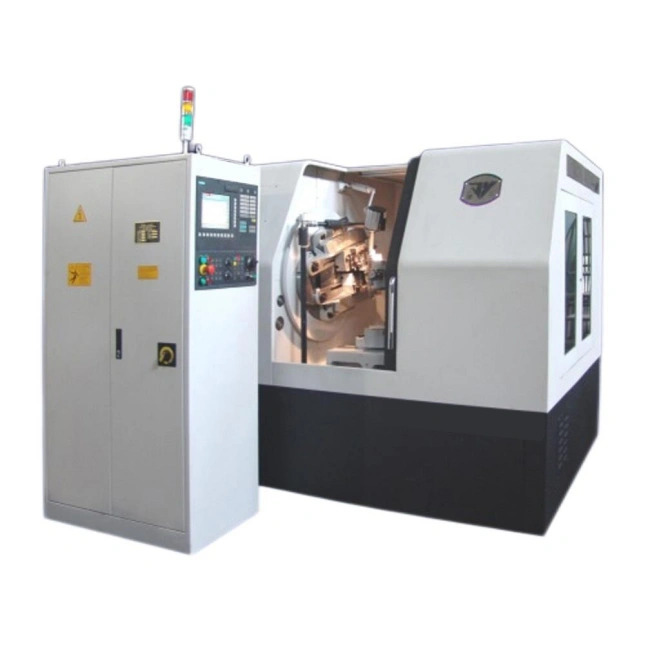

CNC spur bevel gear machine is used to process spur bevel gears and is suitable for general machine building industry. The machine tool is a four-axis CNC machine: rocker rotation (X-axis), workpiece rotation (Y-axis), bed saddle feed (Z-axis), planer reciprocating (S-axis). The machine tool adopts the principle of rolling, so that the gear to be processed and the imaginary production gear (formed by the reciprocating motion of the planer) work repeatedly opposite each other.
The main performance and structural characteristics of the machine tool
1. The tool holder of the core part of the machine tool is installed on the rocking table, the processing gear is installed on the spindle of the gearbox, the gearbox is installed on the saddle, and the rocker table and the saddle are installed on the bed.
2. The tool adopts two planers with straight cutting edges, which are mounted on the tool holder and move in a reciprocating linear line with the tool holder.
3. The tool holder adopts a connecting rod mechanism, which is driven by a frequency conversion motor to make the planer reciprocate.
4. The rotation of the spindle of the rocking table and the gearbox is driven by high-precision worm gear auxiliary transmission, driven by servo motor.
5. The bed saddle feed movement adopts ball screw sub-transmission, driven by servo motor.
6. The machine tool is equipped with SIEMENS 802Dsl CNC system.
7. The machine tool is equipped with a beautiful, safe and applicable full protective cover, with good visibility, preventing oil from splashing, and equipped with an automatic chip extractor.
8. The machine has an independent sealed electrical control cabinet and is equipped with air conditioning.
9. The machining accuracy of machine tool spur bevel gears can reach level 7.
