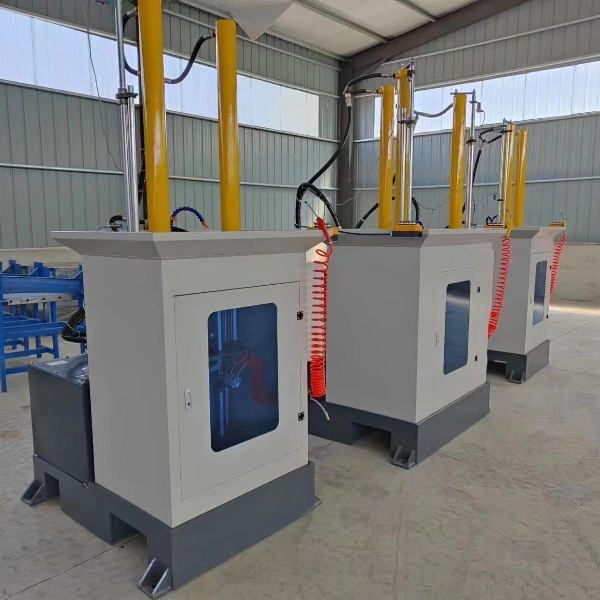

The simple vertical hydraulic broaching machine is a type of mechanical equipment commonly used in metalworking and stamping processes, with the characteristics of high efficiency and precision.
The basic components of simple vertical hydraulic broaching machine The hydraulic broaching machine is mainly composed of the following components:
1. Body structure: The body of the hydraulic broaching machine is usually composed of a base, column, and horizontal upper and lower support plates, ensuring the stability and rigidity of the machine. When using the broaching machine, the user should ensure that there is sufficient contact between the machine body and the ground, and ensure the stability of the machine structure.
2. Hydraulic system: Hydraulic broaching machines use hydraulic systems to provide power, including the main cylinder, hydraulic pump, hydraulic valve, etc., which is responsible for providing the necessary pressure and flow to achieve the work of the broaching machine. Before using the broaching machine, the operator should first check whether the hydraulic system is working normally, and use the correct working medium to make the whole system reach the normal working pressure.
3. Transmission system: The transmission system of a hydraulic broaching machine is usually composed of a hydraulic cylinder, a crank mechanism and a crankshaft, which convert hydraulic energy into mechanical energy for work through the linkage of connecting rods and sliders. Before using the broaching machine, operators should ensure that the components of the transmission system are in a normal lubricated state to avoid excessive friction and wear.
4. Control system: The control system of a hydraulic broaching machine usually consists of control valves, electrical control components, and a human-machine interface, which is responsible for controlling the operation of the entire machine. Before using the broaching machine, operators should familiarize themselves with the functions and usage methods of each component of the control system to ensure that they can be operated correctly.
