Introduction to machine tools

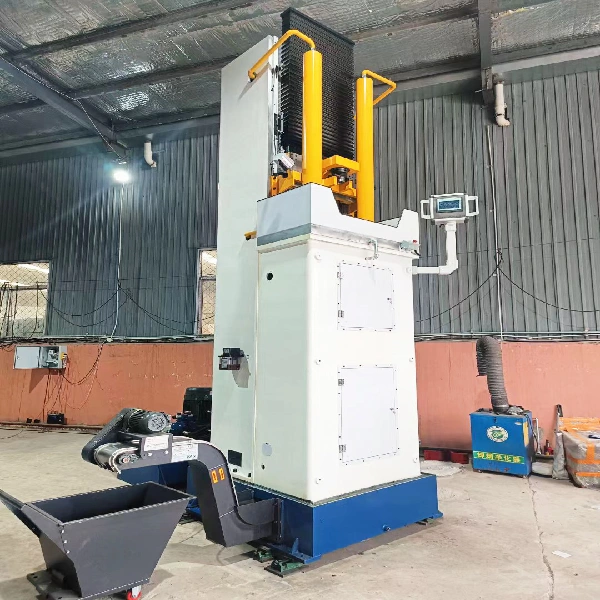

The machine tool is a double-cylinder vertical pulldown machine, which is composed of five parts: bed, bed, base, main and auxiliary skateboard, and its structural characteristics are that the broach axis and the cylinder axis are in the same straight line, and the broaching will not produce a subversive torque between the guide rail and the guide rail mainly plays a guiding role, so it has high strength and precision stability, which is very suitable for broaching workpieces with large tensile force.
Machine features:
★ The structure of this machine tool is characterized by a double-cylinder structure, broaching without subversive torque, in order to further improve the accuracy and stability, the length of the main slide plate reaches 2000mm;
★ The highlight function is also that the position of the used broach can be remembered, and there is no need to adjust the limit switch when used again, avoiding the tedious adjustment of the limit step and making the product specification switching more efficient;
★ The machine tool guide rail adopts a heavy-duty roller linear guide rail, which is fixed with the main skid plate by 8-10 sets of sliders, which has high stability.
★ It has automatic tool pick-up and drop-off and broaching escort functions to improve broaching accuracy and reduce the labor intensity of operators.
★ There is a high-pressure chip punching device inside the worktable, which can effectively remove the residual iron filings on the broach and improve work efficiency;
★ It has the function of frequency conversion and speed regulation, the speed adjustment is flexible, the oil temperature is not easy to rise, and the energy saving effect is remarkable;
★ The machine tool can be configured with a push tray, and the whole broaching process does not need to press the switch, which is more efficient and convenient;
★ Equipped with chip extractor to facilitate the collection and cleaning of iron filings and reduce labor intensity;
★ Fully automatic centralized lubrication system, each lubrication point can automatically supply oil without manual intervention;
