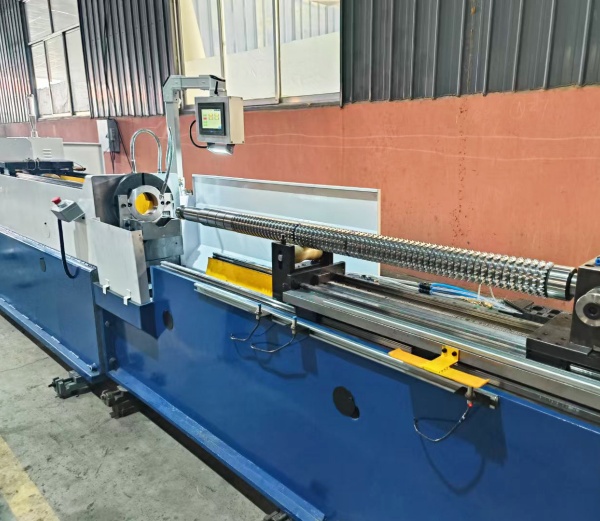

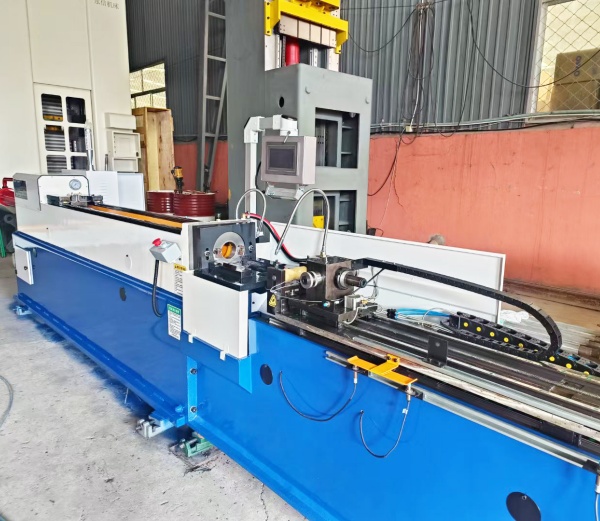

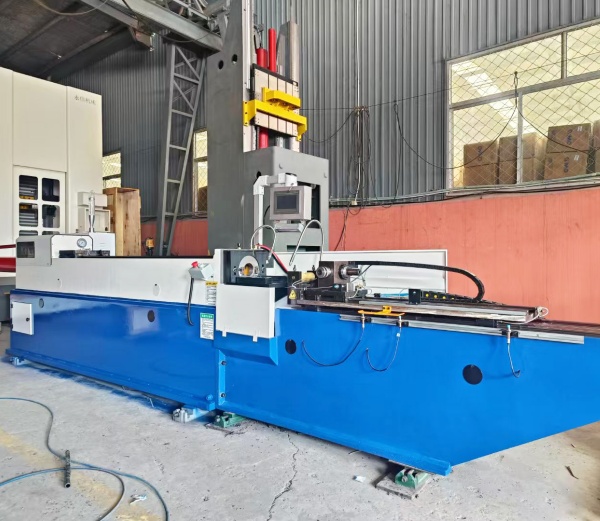

Automatic horizontal broaching machine is equipped with an automatic tool transfer tailstock. This not only automatically transfers the tool but also follows the tool, ensuring the tool is perpendicular to the worktable. This effectively prevents errors caused by gravity, ensuring stable accuracy and reducing labor intensity. It is suitable for batch processing of large spline and round hole parts.
Automatic Heavy Duty Broaching Machine Product Features
★ The bed utilizes a heavy-duty, extended casting structure, while the legs are formed from thickened steel plates by bending and welding. After fine machining, they are integrated with the bed, enhancing overall machine rigidity.
★ The tailstock is the only domestic broaching machine to utilize a cast structure. Accuracy and stability are crucial for automatic tool transfer broaching machines, and a cast tailstock offers higher accuracy and greater stability than a welded tailstock.
★ The machine utilizes a variable frequency speed control system. The broaching, retract, feed, and retract speeds can all be set via the touchscreen. This reduces oil temperature fluctuations and significantly reduces energy consumption, making it a leading speed control method.

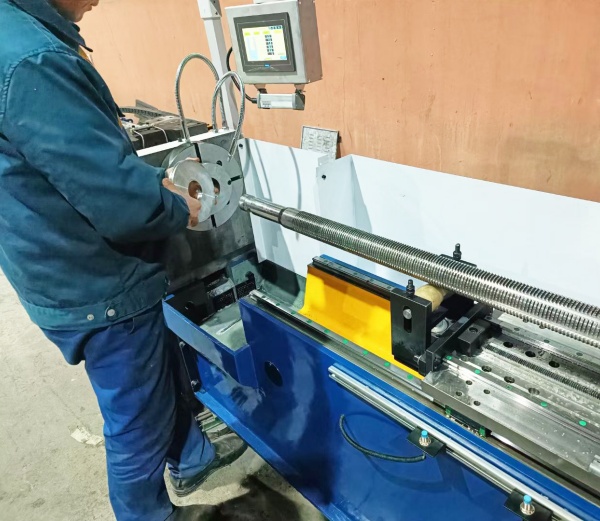

★ It offers both semi-automatic and fully automatic functions, allowing for both manual tool placement and automatic tool transfer, to accommodate various broaching needs. ★ Extended waterproof sheet metal prevents cutting fluid and iron chips from splashing onto the ground and causing environmental pollution.
★ A fully automatic centralized lubrication system eliminates the need for manual intervention and features an oil collection device to prevent oil from spilling onto the ground and polluting the environment.
